CYLINDRICAL GRINDING MACHINE
LU - 150
A cylindrical grinding machine is a precision machine tool that uses a rotating abrasive wheel to shape and finish external cylindrical or conical surfaces, creating high accuracy, smooth finishes (e....
High Precision Engineering
Advanced CNC Technology
24/7 Technical Support
Worldwide Delivery Available
Product Overview
A cylindrical grinding machine is a precision machine tool that uses a rotating abrasive wheel to shape and finish external cylindrical or conical surfaces, creating high accuracy, smooth finishes (e.g., shafts, axles etc.), with key features like variable speed workheads, hydraulic / mechanical traverse, and precision slides for producing round, concentric parts for industries from auto to aerospace.
Key Features
Cylindrical Grinding Machine

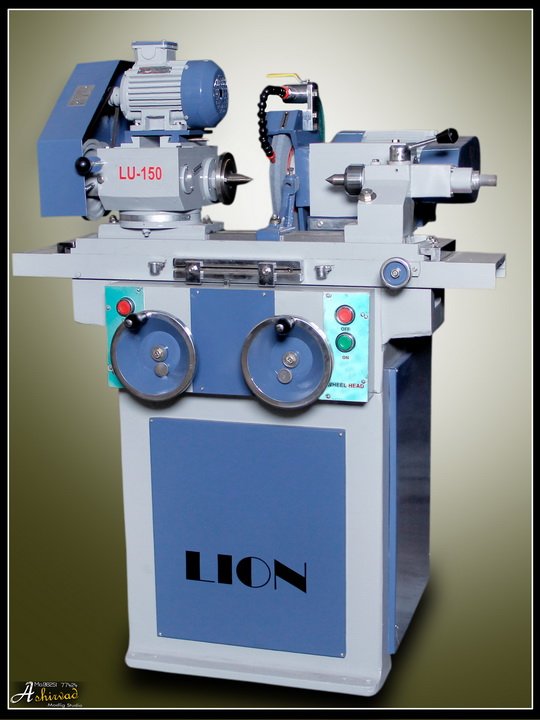

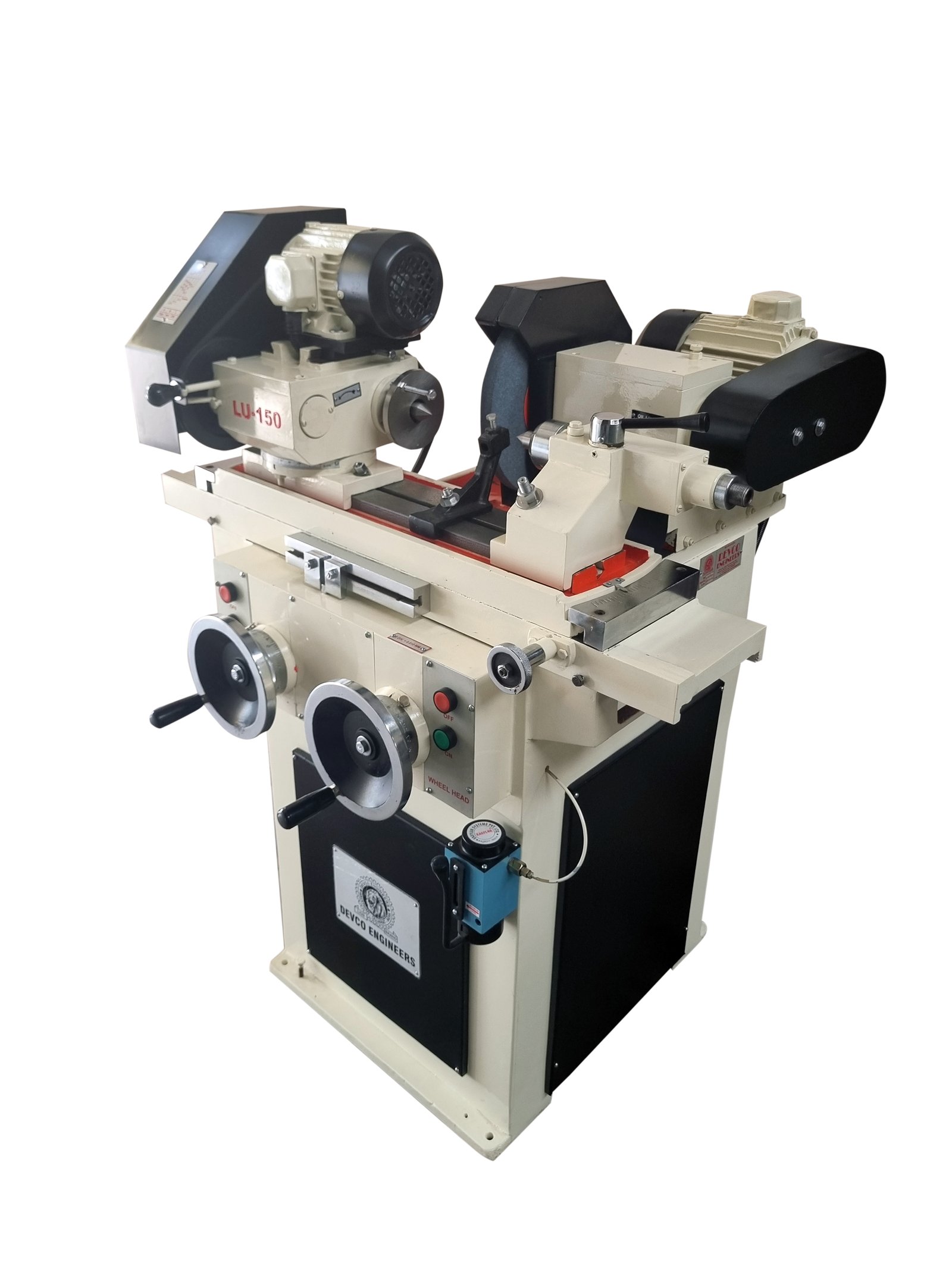

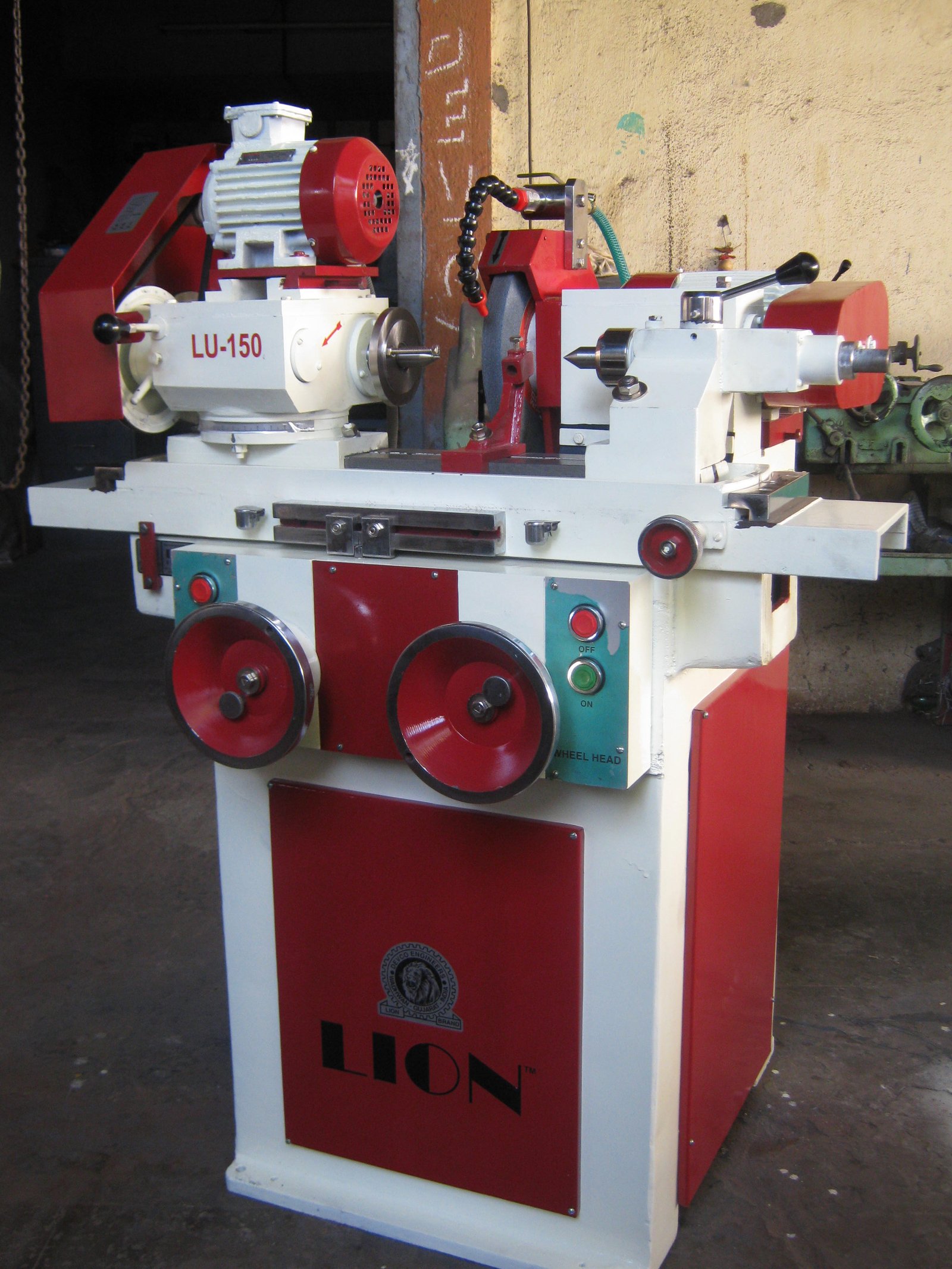

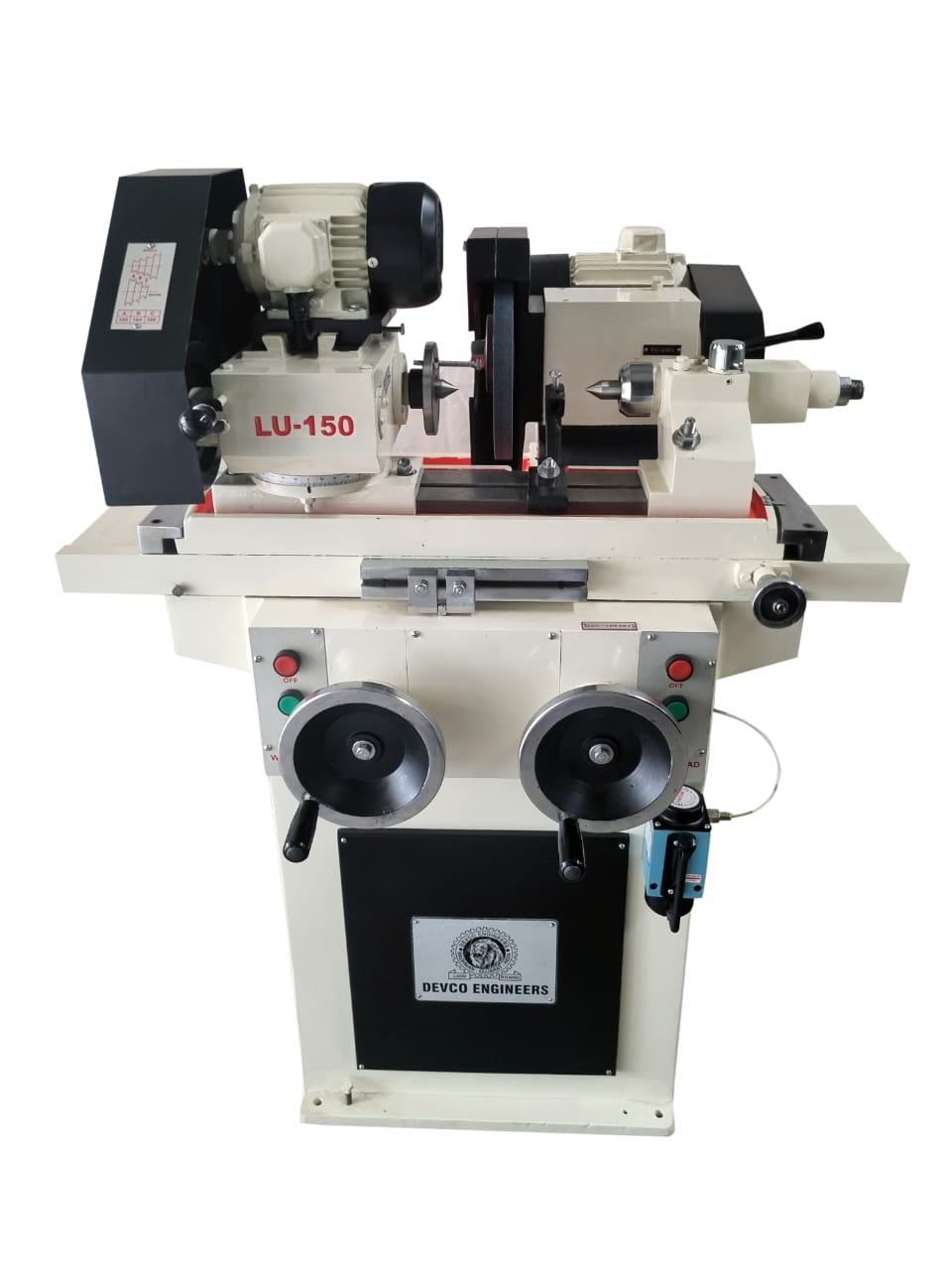

Cylindrical Grinding Machine LU-150,
Center Distance 150mm
Center Height 102mm
Technical Specifications
| Specification | LU - 150 |
|---|---|
| CAPACITY | |
| DISTANCE BETWEEN CENTER | 150MM |
| CENTER HEIGHT | 102MM |
| Z – AXIS LONGITUDINAL TABLE | |
| Swivelling Angle | +9 DEG. -9DEG. |
| Table Stock | 160MM |
| In Feed of hand wheel per division | 0.1MM |
| WHEEL HEAD | |
| Grinding Wheel Size (OD x W x ID) | 300MM X 25MM X 76.2MM |
| Grinding Wheel Speed | 1900 RPM |
| In Feed of hand wheel per division | 0.01MM |
| Electric motor Req. 3phase | 1.5HP |
| Spindle Speed | 100 – 185 – 350 RPM |
| Spindle in Taper | MT-3 |
| Electric motor 3phase | 0.5HP |
| Taper in Quile | MT-3 |
| Max. quile stock | 25MM |
The mentioned specifications & dimensions are subject to change without notice.
Accessories
Standard Accessories
- Grinding Wheel with Flange
- Wheel Flange Extractor
- All Induction Motors
- Electric Switch Gear & Control (Make:- Schneider)
- V-Belts and Pulley Cover
- Dead Centers 2 Nos. (MT-3)
- Manual Lubrication Oil Pump
- Coolant Tank with Pump and Piping
- Safety Splash Guards
- Straight Dressing Attachment with Diamond Dresser
- Tool Kit (Spanners & Allen Keys, ETC.)
Optional Accessories
- Internal Grinding Attachment
- Hydraulic Attachment Z – AXIS (LONGITUDINAL TABLE) Auto Reciprocation & Control
- Hydraulic Attachment Z – AXIS (LONGITUDINAL TABLE) Auto Reciprocation & Control with Dwell Timmer
- Automatic Lubrication Oil Pump
- Magnetic Separator for Coolant
- Micro Feeding Attachment (1Div. = 1 micron Ø)
- Three Point Steady Rest
- Two Point Steady Rest
- Wheel Balancing Arbor
- Wheel Balancing Stand
- Grinding Wheel Flange with Balancing Blocks
- True Chuck Flange
- LED Machine Lamp with Stand
- Precision 3-Jaw Chuck
